TTCN-3 HSS协议测试例集为家庭用户服务器（Home Subscriber Server implementation）一致性及交互性测试开发框架。该测试集包含88个全功能的基于ttcn-3的测试例。可实现基于ttworkbench的自动化测试。该测试集可以基于PC运行，也可以结合仪表，集成到系统环境中。

The Conformance and Interoperability Test Framework for Home Subscriber Server Implementation

Features

• Support of 3GPP release 6 and 3GPP release 7
• 88 tests for
  • Location management procedures
  • User data handling procedures
  • Authentication procedures
  • Subscription and notification procedures
• Tests for valid and invalid DIAMETER protocol behavior and syntax variations in DIAMETER messages
• Exhaustive set of context parameters for flexible adaptation of TTCN-3 tests to the HSS implementation under test
• Fully automated test execution
• Platform-independent test execution
• Test tracing at different levels of detail
• Summary of test results
• Test definition and documentation using the standardized test notation TTCN-3

Benefits

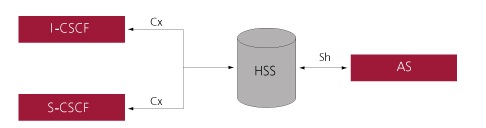

• Standards-based testing according to DIAMETER specifications especially for the IMS Cx and Sh interface
• Fast and simple test execution and analysis
• Repeatability of tests and full support of test automation
• Platform independence and rapid integration to existing test environments
• Flexibility through usage of the constantly evolving standardized test notation TTCN-3

Standards

• ISO/IEC 9646-1: "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 1: General concepts".
• RFC 3588: "Diameter Base Protocol".
• 3GPP TS 29.228: "3rd Generation Partnership Project; Technical Specification Group Core Network and Terminals; IP Multimedia (IM) Subsystem Cx and Dx interfaces; Signalling flows and message contents".
• 3GPP TS 29.229: "3rd Generation Partnership Project; Technical Specification Group Core Network and Terminals; Cx and Dx interfaces based on the Diameter protocol; Protocol details".
• 3GPP TS 29.328: "3rd Generation Partnership Project; Technical Specification Group Core Network and Terminals; IP Multimedia (IM) Subsystem Sh Interface; Signalling flows and message contents".
• 3GPP TS 29.329 "3rd Generation Partnership Project; Technical Specification Group Core Network and Terminals; Sh Interface based on the Diameter protocol; Protocol details".
• ETSI ES 201 873-1: "Methods for Testing and Specification (MTS); The Testing and Test Control Notation
  version 3; Part 1: TTCN-3 Core Language".

Reference Platforms

• Java 6
• Windows 7 (32bit or 64bit) / Vista / XP / 2000
• Linux Red Hat - v7.1 (x86/GTK)
• Linux SuSE - v9.1 (x86/GTK)

发邮件到sales@testingtech.com.cn了解更多信息。
